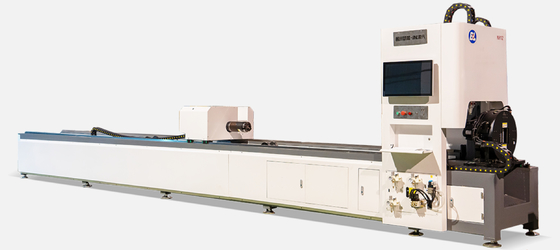

When selecting a laser tube cutter, seemingly identical specifications can conceal vast differences in material quality, craftsmanship, and attention to detail. These elements are the true determinants of machining accuracy, stability, service life, and final product quality. The following detailed comparison highlights the distinctions between Mingzhou Laser equipment and common market alternatives across core components.
1. Guide Rail Specification: Robustness for Long-Term Rigidity
Common Practice
The use of approximately 20mm or 25mm wide guide rails is common. These rails offer relatively weaker rigidity, prone to micro-deformation and vibration under continuous heavy loads or high-speed operation, adversely affecting cutting precision and dynamic stability.
Mingzhou Solution
Our machines are equipped with 30mm heavy-duty guide rails as standard. The increased width translates to superior bending resistance and stability, providing a solid and reliable foundation for moving parts, effectively dampening vibration, and ensuring exceptional dynamic accuracy over the long term.
2. Rail Fixing & Protection: Dual Assurance for Stability
Common Practice
Rails are often secured at the ends with simple, small-sized screws, offering limited clamping force. Furthermore, the widespread lack of protective measures leaves rail ends vulnerable to impact damage from components like cable carriers during debugging or maintenance.
Mingzhou Solution
We employ oversized screws for robust fixation, combined with specially designed anti-collision rubber pads mounted on the rail ends. This approach not only ensures a more secure mechanical connection but also proactively prevents damage to these precision components, demonstrating our comprehensive consideration for long-term machine stability.
3. Sensor Switches: Larger Size, Superior Reliability
Common Practice
The use of small, approximately 12mm diameter sensor switches is typical. These offer a limited sensing range and weak anti-interference capability. In industrial environments filled with oil, coolant, and metallic dust, this can lead to positioning errors or machine malfunctions due to unstable signals.
Mingzhou Solution
We select large, 18mm diameter sensor switches. The larger sensing area provides a longer detection distance and enhanced signal stability, effectively resisting on-site interference and guaranteeing absolute precision and reliability for homing, limit switching, and other critical actions.
4. Sensor Brand: Imported Core for Accuracy & Speed
Common Practice
To control costs, some manufacturers use obscure domestic or counterfeit "copycat" sensors. Their sensing accuracy, response speed, and durability cannot be guaranteed, representing a potential source of machine instability.
Mingzhou Solution
Our core sensing components utilize South Korea's Autonics brand. Renowned globally in automation, Autonics products are celebrated for their high precision, millisecond-level response times, and exceptional environmental resilience, safeguarding the accuracy and responsiveness of our machine control system at the source.
5. Transmission Rack: Ground Helical Gear for a Leap in Precision
Common Practice
Many still rely on technologically outdated, punched "spur" racks. These racks have low precision and significant meshing backlash,EASILY causing vibration and backlash during transmission, resulting in serrated cut surfaces or unstable speed.
Mingzhou Solution
We invest in high-precision ground helical gear racks. Helical gears offer a larger contact area, smoother transmission, and extremely low noise. Their comprehensive transmission accuracy can exceed that of spur gears by over three times. While the manufacturing cost is four times higher, the return is unparalleled motion smoothness and high repeatable positioning accuracy—the foundation of high-quality cutting.
6. Bed Connection: Full-Fastening for a Solid Foundation
Common Practice
To save on labor and material costs, an "interval fastening" method is often used for connecting the rack to the bed (e.g., skipping one or two holes between screws). This corner-cutting practice leads to insufficient connection rigidity, causing micro-displacements in the bed over time, directly impacting the machine's long-term stability and accuracy retention.
Mingzhou Solution
We insist on full fastening using dowel screws at every pre-set connection point. Although this process is more time-consuming and labor-intensive, it ensures the rack and bed become a unified, solid whole. This significantly enhances the machine's foundational rigidity, fundamentally preventing accuracy loss due to connection loosening and guaranteeing rock-solid stability under heavy daily workloads for years.
7. Lubrication System: Automated Precision vs. Manual or Dry
Common Practice
Dry beds and rails, free of oil residue, typically indicate the absence of an automatic lubrication system or reliance on irregular manual application. This primitive approach fails to ensure continuous, effective lubrication for core components like rails and racks, leading to increased friction, accelerated wear, and ultimately, impaired running accuracy, unusual noises, and a drastically shortened lifespan for rails and ball screws.
Mingzhou Solution
We feature a standard centralized automatic oil lubrication system. This system provides timed, quantitative lubrication to friction pairs like guide rails and racks. Our rails are consistently coated with a uniform, thin oil film, presenting a smooth and lustrous appearance. This ensures moving parts operate with minimal wear and resistance, serving as the "lifeline" for long-term accuracy and stability.

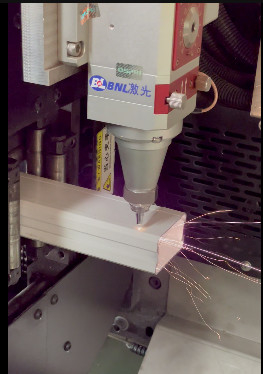

8. Cutting Head Structure: Fully Enclosed & Reinforced
Common Practice
The cutting head structure is often simplistic, frequently employing an open or semi-enclosed design with thin sheet metal, leaving key transmission components (e.g., motors, couplings) exposed. This weak structure has low rigidity, is prone to resonance, and offers no protection. In a workshop environment, metal dust and cutting spatter easily invade precision bearings and drive parts, causing rapid wear, damage, and loss of accuracy.
Mingzhou Solution
Our cutting head employs a fully enclosed, reinforced sheet metal structure. This not only creates a cleaner, more aesthetic appearance but, more importantly, provides:
High Rigidity: The integrated reinforced design effectively suppresses vibration during cutting, ensuring smooth head movement.
Strong Protection: Built-in protection for motors, cables, and pneumatic lines effectively defends against dust, moisture, and accidental impact.
High Integration: Rational internal layout and organized wiring facilitate maintenance, reflecting superior industrial design.
9. Head Transmission & Protection: Sealed Precision vs. Simple Exposure
Common Practice
The head transmission often uses a simple "screw + rail" combination, lacking essential protective covers and regular lubrication. This exposes precision screws and rails directly to metal dust, moisture, and oil, making them highly susceptible to rust, wear, and seizing. Screw drives can exhibit jitter and thermal elongation at high speeds, affecting accuracy, and their precision is irrecoverable once worn.
Mingzhou Solution
The core components of our cutting head utilize high-precision linear guides (or high-precision linear modules), offering inherently higher rigidity and motion accuracy. Crucially, we equip them with fully sealed protective covers and integrate an automatic lubrication system. This creates a clean, stable operating environment,彻底 preventing dust ingress and rust risk, ensuring the cutting head's consistent precision and stability over the long term.
10. Servo Drive System: High-Power Bus vs. Low-Power Pulse
Common Practice
To reduce costs, small-brand, low-power servo motors are used, sometimes even with outdated pulse control systems. For a 165-chuck model, this often means:
Front Chuck: 1.3KW, 1.0KW, or even 950W.
Rear Chuck: 1.0KW or 950W.
X-Axis: 400W.
Consequences: Motor power is the source of dynamic performance. Underpowered motors, akin to "a small horse pulling a heavy cart," result in slow acceleration, insufficient high-speed torque, and poor dynamic response. When machine speed is set higher, the motor cannot drive the load to the intended speed, causing "inability to reach or follow" commands. This not only impacts efficiency but also shortens motor life due to overload and compromises cut quality. Pulse control wiring has poor noise immunity, is prone to signal decay, and results in lower control accuracy.
Mingzhou Solution
We use high-brand, high-power servo motors based on a bus control system (for a 165-chuck model):
Front Chuck: 1.8KW - Delivers powerful rotational force for fast, stable tube rotation.
Rear Chuck: 1.3KW - Provides ample tailstock thrust for stable processing of long tubes.
X-Axis: 750W - Ensures the cutting head possesses strong acceleration and dynamic response for high-speed cutting, instantly matching programmed speeds.
Key Advantage: High-power motors provide ample dynamic reserve, ensuring the machine performs effortlessly at any speed, with quick acceleration and stable deceleration. The bus system offers strong noise immunity, higher control precision, simpler wiring, and multiplied reliability.
11. Safety & Energy Handling: Standard Braking Resistors
Common Practice
To save a few hundred dollars, braking resistors are omitted or under-specified. This is a dangerous and short-sighted practice. During rapid servo motor deceleration, substantial reverse electrical energy (regenerative power) is generated. Without braking resistors to dissipate this energy, it directly impacts the drive's internal capacitors, causing:
Drive overvoltage alarms and frequent faults.
Drastically reduced servo drive lifespan, potentially burning them out.
Poor braking performance and decreased positioning accuracy.
Mingzhou Solution
We strictly equip our machines with high-quality braking resistors, sized according to motor power and load. While this increases our cost, it provides vital protection for the customer's equipment:
Safety Assurance: Safely and promptly dissipates regenerative energy, protecting the expensive servo drive system.
Stable Performance: Ensures rapid, accurate braking, preventing production interruptions from overvoltage alarms.
Extended Lifespan: Effectively protects the electrical control system, extending the overall machine service life.
Summary:This comparison clearly demonstrates that Mingzhou Laser Tube Cutters employ materials and craftsmanship far exceeding common industry standards in the three core areas determining equipment performance: "Rigidity" (rails, bed connection), "Control" (sensors), and "Transmission" (gear rack). We firmly believe that our commitment to detail is the ultimate responsibility towards our customers' investment and product quality.
From the bed structure to the transmission system, from core components to safety protection, Mingzhou chooses the path of "High Configuration" and "Professionalism" in every aspect affecting performance, precision, and longevity. We refuse cost compromises that sacrifice quality and long-term stability.
Choosing Mingzhou Laser means investing not just in a machine, but in lasting efficiency, precision, and peace of mind. We believe true value lies in the stable performance our equipment delivers throughout its entire lifecycle, creating unwavering value for your operation.
